Set Up

All prerequisites, links to material and slides for this course can be found on github.

• Reproducible_R

Or can be downloaded as a zip archive from here.

• Download zip

Course materials

Once the zip file in unarchived. All presentations as HTML slides and pages, their R code and HTML practical sheets will be available in the directories underneath.

• presentations/slides/ Presentations as an HTML slide show.
• presentations/singlepage/ Presentations as an HTML single page.
• presentations/r_code/ R code in presentations.
• exercises/ Practicals as HTML pages.
• answers/ Practicals with answers as HTML pages and R code solutions.
• data/ Data used in this presentation.

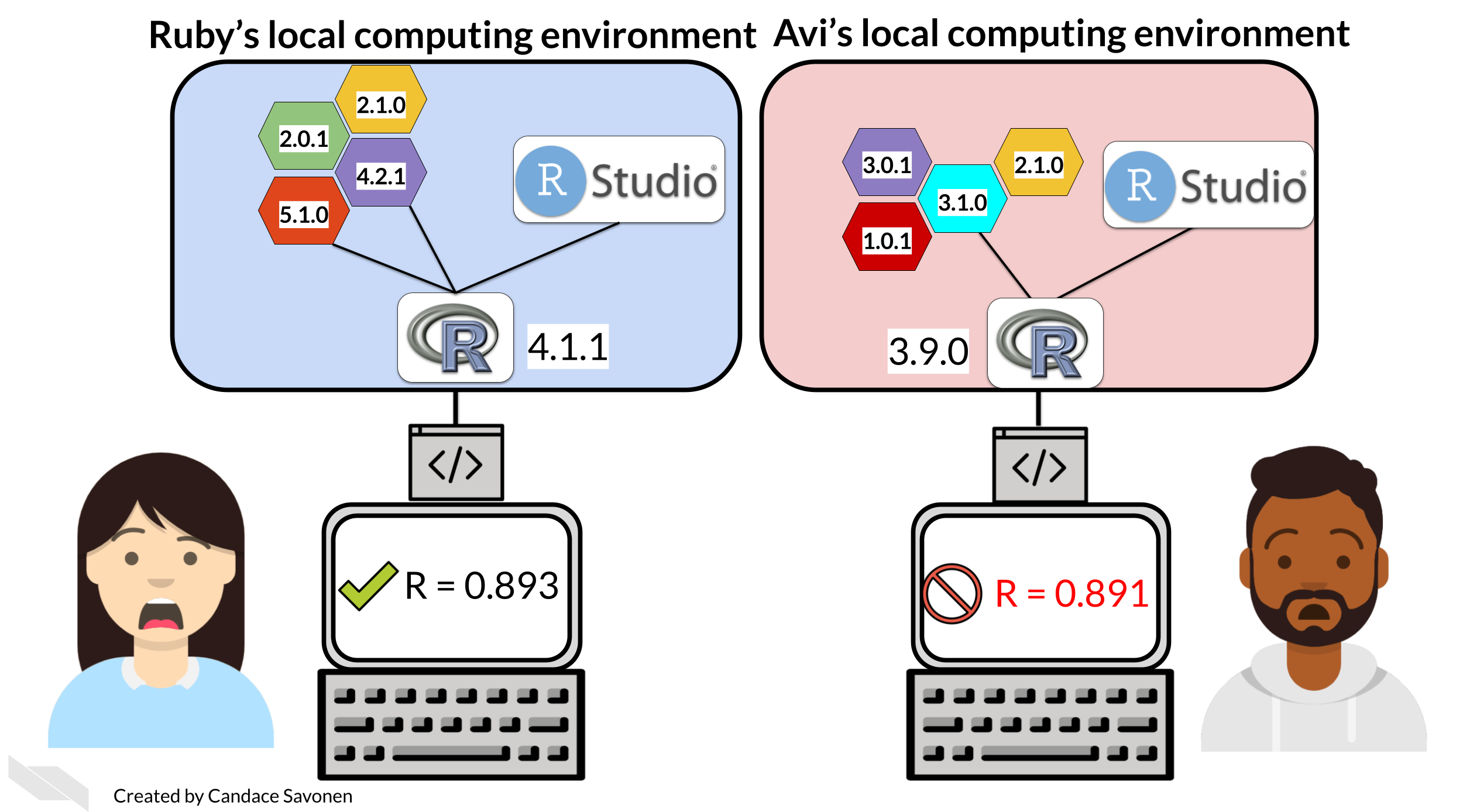

The problem

Something works on your computer (e.g. bioinformatics analysis or software deployment), and you want to make sure that it will work on another computer.

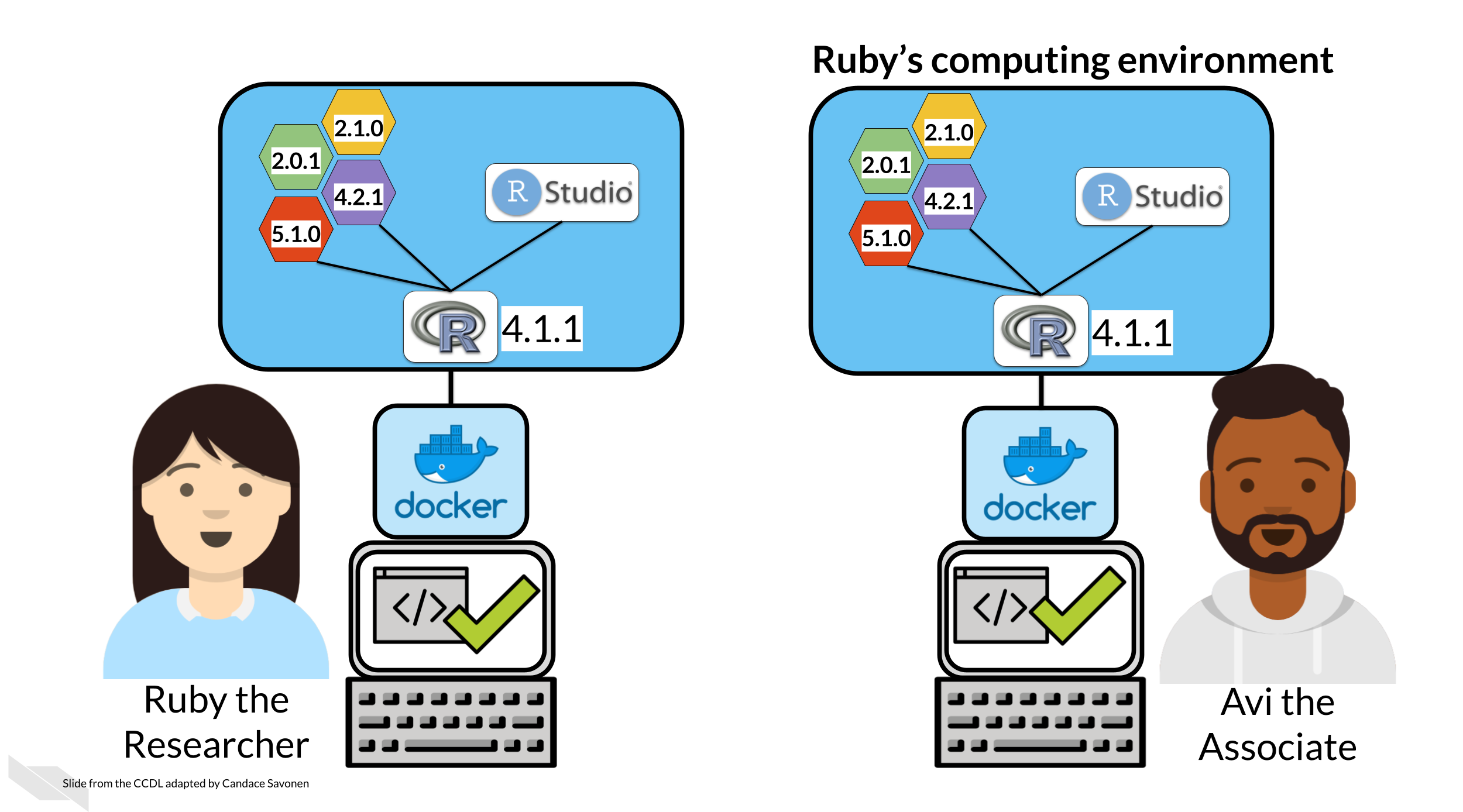

The solution - Docker!

Docker allows for the creation of an isolated environment that can be shipped across different users, machines, or operating systems, and to virtual machines or the cloud.

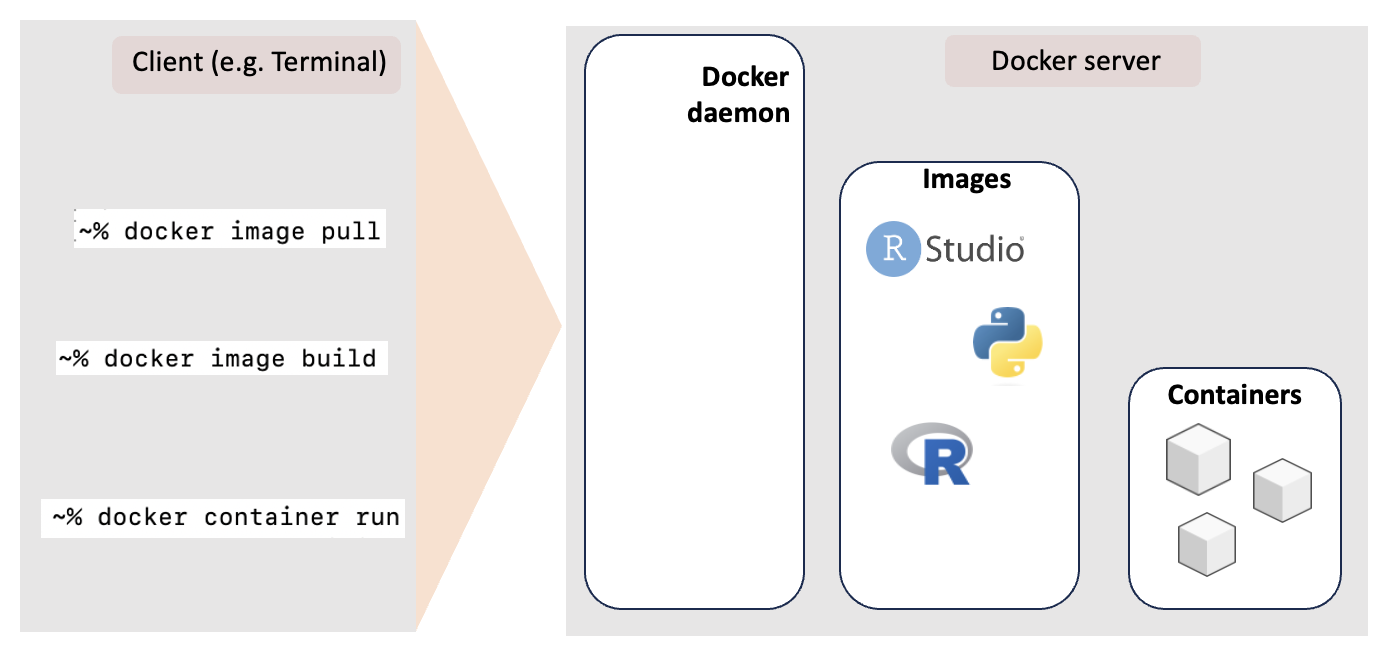

Docker client and host

Once installed on your computer, Docker runs a process called the Docker daemon. A daemon is a program that runs as a background process and is not under direct control of the computer user, and the Docker daemon is the engine that manages Docker services and objects by communicating with the client.

The Docker client, typically the command line interface, communicates with the Docker daemon based on user commands.

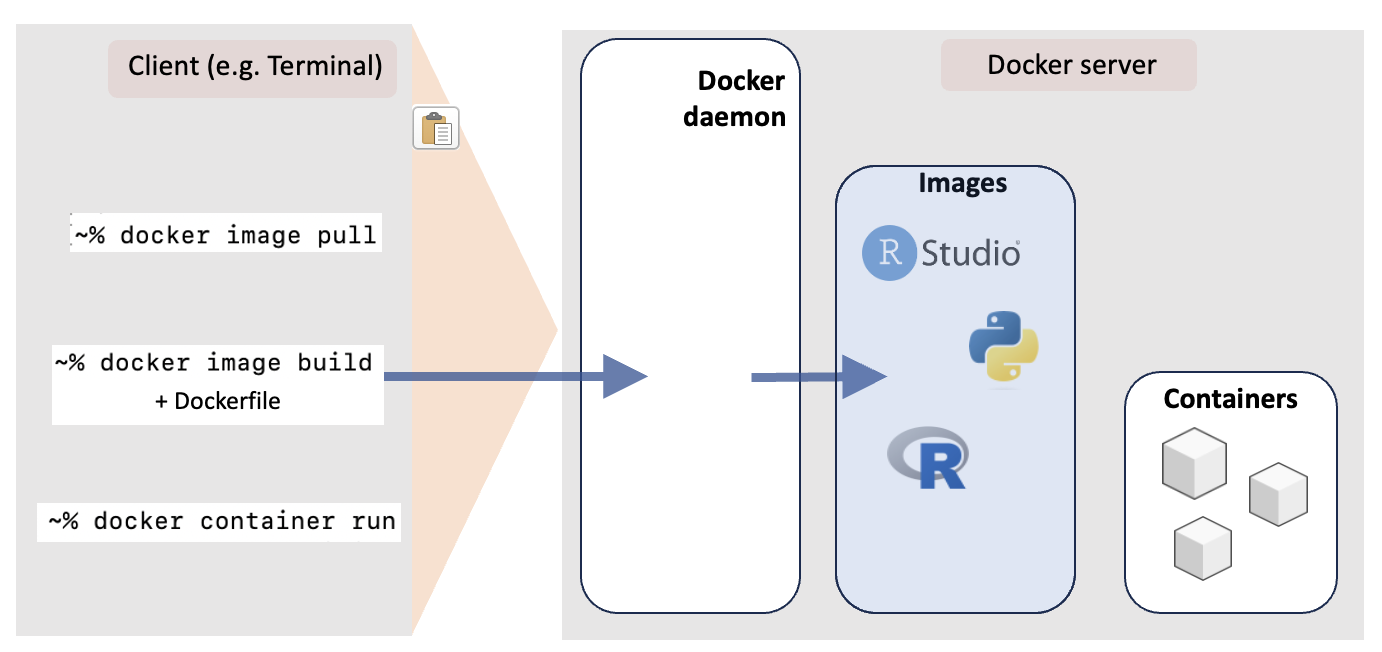

Creating Docker images

The 'docker image build' command uses a Dockerfile to create an image.

A Docker image is a read-only, isolated file system that contains all software, dependencies, scripts, and metadata required to run a container.

Launching Docker containers

Once an image is built, an instance of this image can be launched as a stand-alone application, also known as a container.

Pulling Docker images

There are public repositories of Docker images (e.g. Docker Hub), and typically you start with an existing image and build on top of this.

Installing Docker

Use this link to install Docker.

• Click on the Docker desktop icon and make an account with Docker.
• Docker must be open and running to use the command line interface (CLI), which is how we will primarily use Docker.
• See here for Docker CLI commands.

Check Docker version to make sure Docker is installed and running.

Code (terminal):

docker --version

Output:

Installing Docker

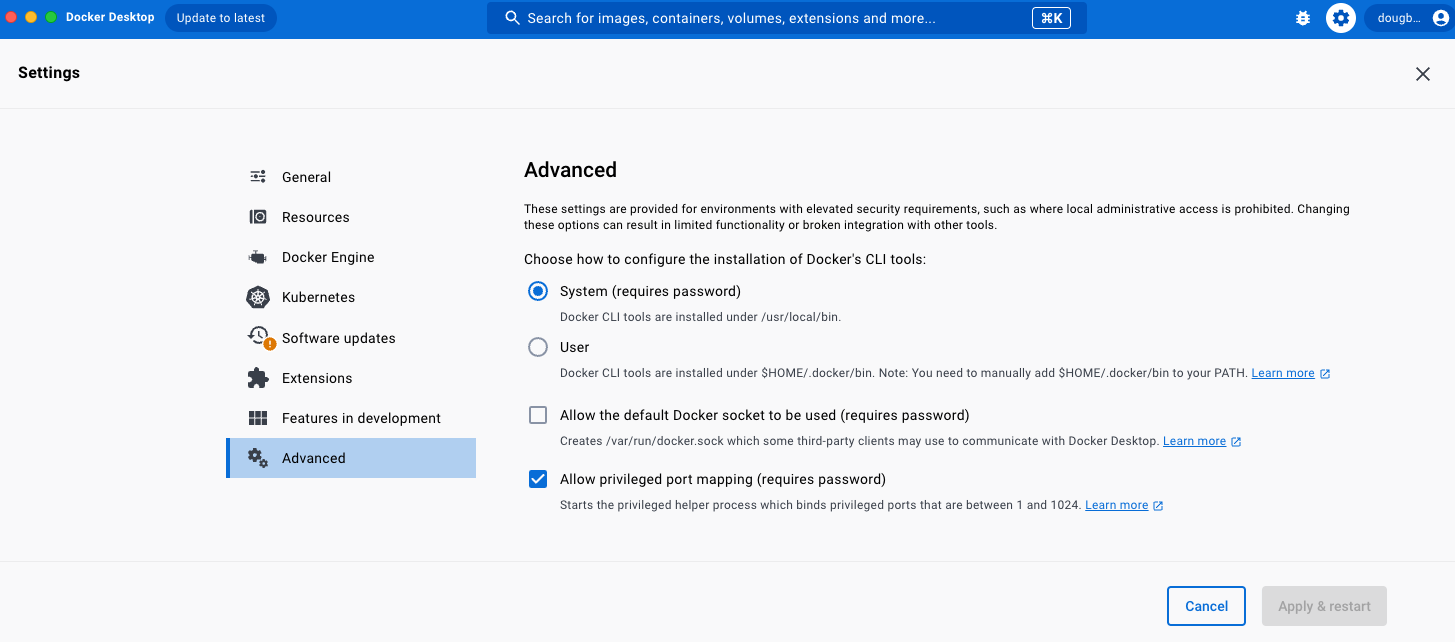

If previous command isn't found check the Docker Desktop advanced settings and make sure CLI tools are available system-wide.

Pulling Docker images - Rocker

Rocker is a very useful source of images on Docker Hub for R and RStudio. We can pull these images immediately after installing Docker. Here we pull an image containing RStudio and a specific version of R.

Code (terminal):

docker image pull rocker/rstudio:4.4.0
# alias of 'docker pull' from older Docker versions

Viewing local Docker images

After pulling, the image is now available on our system to run.

Images have names, tags, and image IDs as shown in the output. The ID is a hash of the metadata and filesystem of the Docker image.

Code (terminal):

docker images

Output:

Viewing local Docker images

After pulling, the image is now available on our system to run.

Images have names, tags, and image IDs as shown in the output. The ID is a hash of the metadata and filesystem of the Docker image.

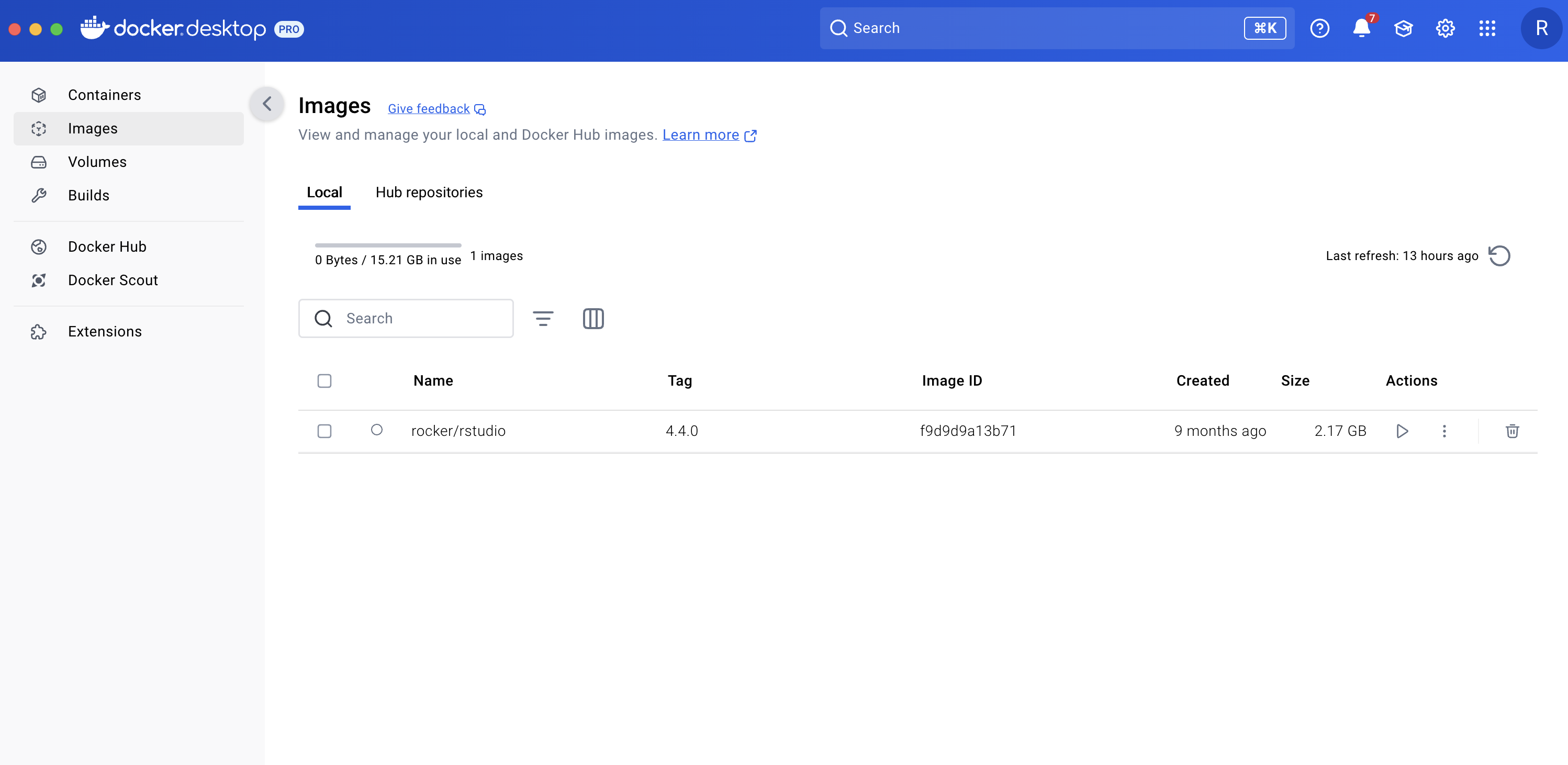

We can also view the image in Docker desktop:

Running Docker containers

Once the image is on our system, we can launch a container with the 'docker container run' command.

Components of the run command:

• --rm: this will automatically remove a container when you exit, otherwise can take up room on computer with old, unused containers
• -p: before the colon is the port on your computer to be exposed and after the colon is the port inside the container
• -e: an environmental variable is set when the container is run, and this will be the password to login
• the last argument is the image name and tag (both seen with 'docker images')

Code (terminal):

docker container run --rm \
               -p 8787:8787 \
               -e PASSWORD=password123 \
               rocker/rstudio:4.4.0
# alias of 'docker run' from older Docker versions

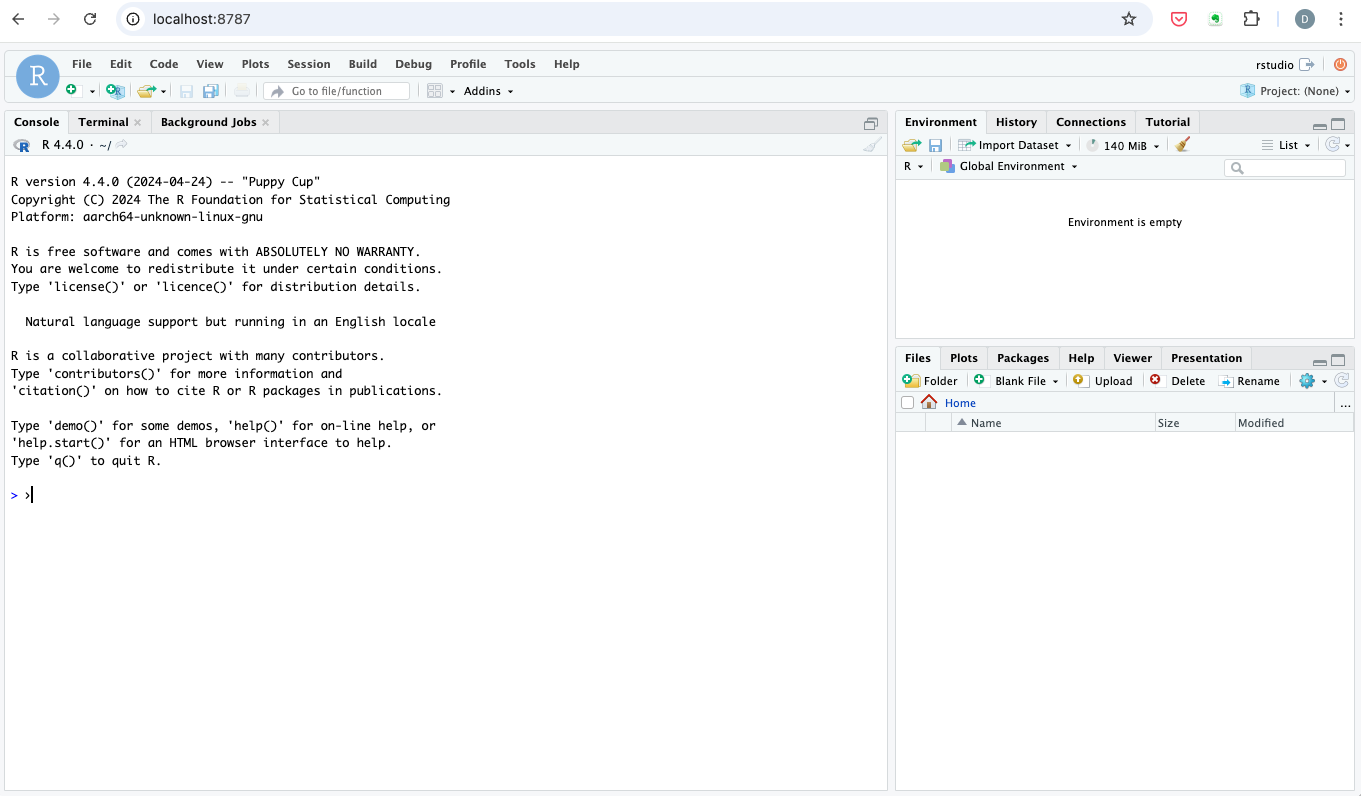

Running Docker containers

While the container is running, we can go to 'http://localhost:8787' in a browser and log in with the the user 'rstudio' and the password from 'docker container run'.

Listing active Docker containers

To see all containers running in the local environment, use the 'docker container ls' command

Code (terminal):

docker container ls
# alias of 'docker ps' from older Docker versions

Output:

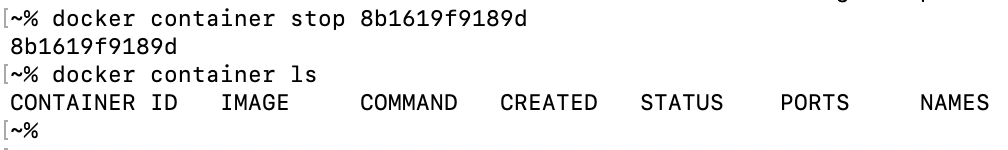

Stopping Docker containers

To stop the container currently running, if you are in the terminal tab where it was launched press Ctrl+C.

Or open up another tab and the 'docker stop' command can be used with the ID listed from 'docker container ls'

Code (terminal):

docker container stop 8b1619f9189d # this is the ID from 'docker container ls'
docker container ls

Output:

Adding volumes to containers

The docker container has it's own file system, and we can mount a local directory onto that file system with the '-v' flag for the 'docker container run' command.

• Navigate to the 'r_course' directory within the downloaded course using the 'cd' command in the terminal
• Use the 'docker container run' command with the '-v' flag
  • the left side of the colon is the path on your computer to mount
  • the right side is the location within the docker container file system where that data will be accessible
  • '/home/rstudio' is set by the container to be the working directory of Rstudio

Code (terminal):

# navigate to 'r_course' directory in downloaded material
 cd ~/Downloads/RU_reproducibleR-master/r_course
 # launch docker container
 docker container run --rm \
          -v ./data:/home/rstudio \
          -p 8787:8787 \
           -e PASSWORD=password123 \
           rocker/rstudio:4.4.0

Adding volumes to containers

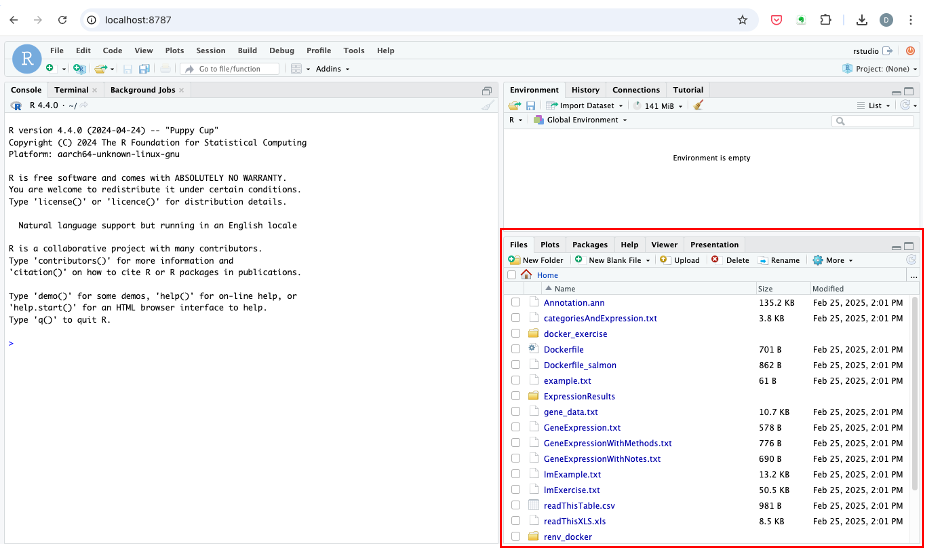

The RStudio interface now shows the files in the 'data' directory

Adding volumes to containers

These files can be read into R, and also files can be written to the local environment

Code (R in docker image):

dataIn <- read.csv("readThisTable.csv")
head(dataIn, 2)
# add gene IDs and write to new file on local computer
dataIn$Gene_ID <- seq(nrow(dataIn))
write.csv(dataIn, "rnaseq_table_withIDs.csv")

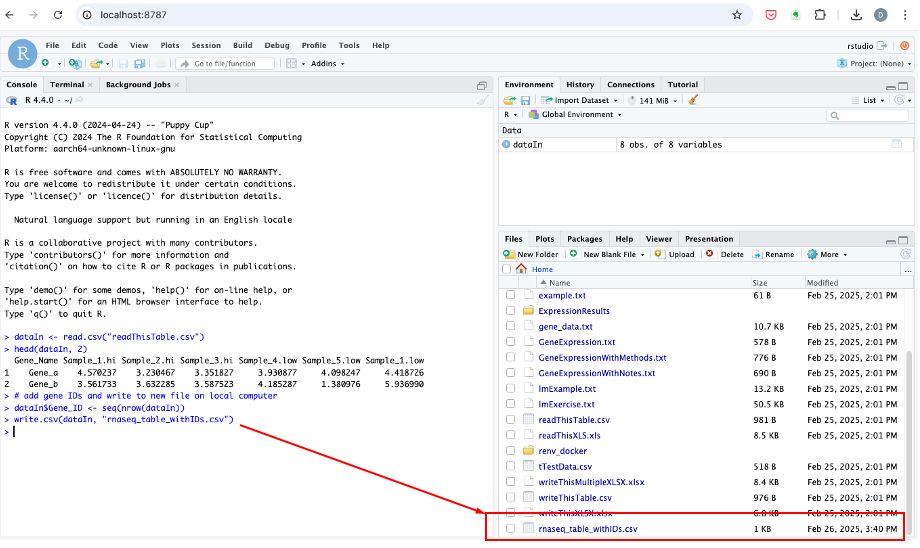

Adding volumes to containers

These files can be read into R, and also files can be written to the local environment

Output:

Adding volumes to containers

In addition to the files deliberately written to the local directory, the R environment files from this RStudio session are written to the working directory in the container, and therefore are copied to the local directory as hidden folders (.config and .local).

This R environment will then be loaded the next time you launch an RStudio container with this volume mounted. While this is normally okay, if desired a fresh RStudio session can be launched with the same mounted volume by removing these hidden directories.

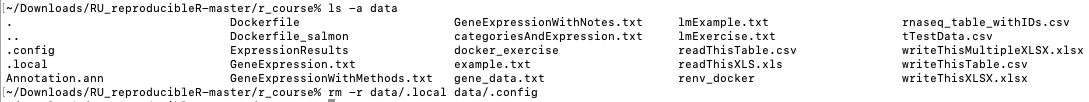

Code (terminal):

# For windows use: dir /a
ls -a data
rm -r data/.local data/.config

Output:

Dockerfile basics and commands

The image we pull from Rocker contains base R and its associated packages. To customize the image, we will need to make a Dockerfile that adds to the Rocker image.

A Dockerfile provides the recipe to make the image. Using specialized commands, this file provides instructions to install the R packages and its dependencies.

Some examples:

• FROM: sets the base image and further instructions build off of this
• RUN: executes a command as if in terminal
• LABEL: add metadata to the image
• COPY: copies files from the the host system to the image file system
• CMD: when the container is launched, this is the command that will be run

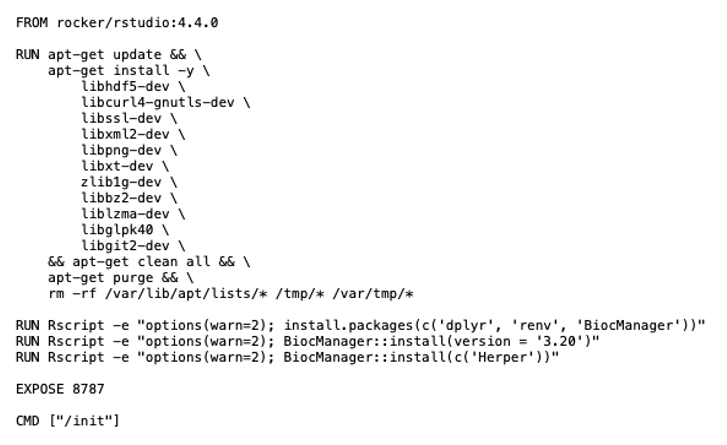

Dockerfile components

Dockerfile components

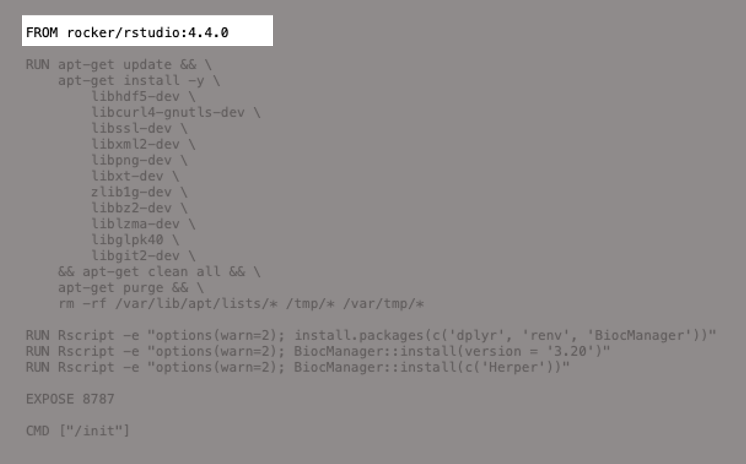

Here we start with the same RStudio base image we used previously, and then add some key R packages.

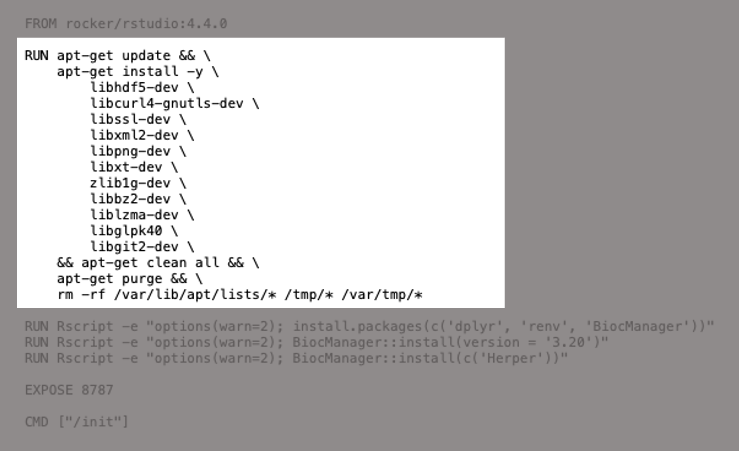

Dockerfile components

The first RUN command installs system dependencies that are common to R packages. This command looks for updates, installs, and cleans up unnecessary files.

Dockerfile components

This is a list of libraries is not comprehensive and adding more R packages could result in missing dependencies.

These can be identified in the log for the build command and manually added to the apt-get command, or alternatively, dependencies for a specific R or Python package can be found using the Posit package manager. This resource can also be used to install only those libraries that are necessary, which can help to limit the size of the image.

Dockerfile components

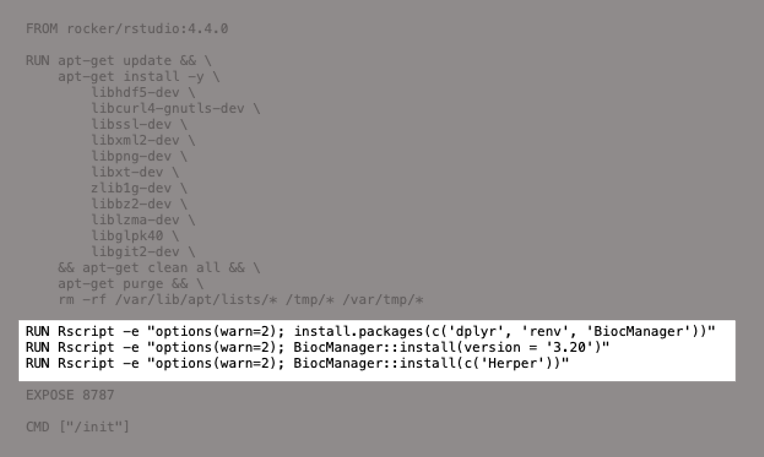

Then the R packages are installed using 'install.packages' or 'BiocManager::install' for Bioconductor packages.

Note: The 'options(warn=2)' at the beginning of the R command will stop the installation when there is a warning, making it easier to debug.

Dockerfile components

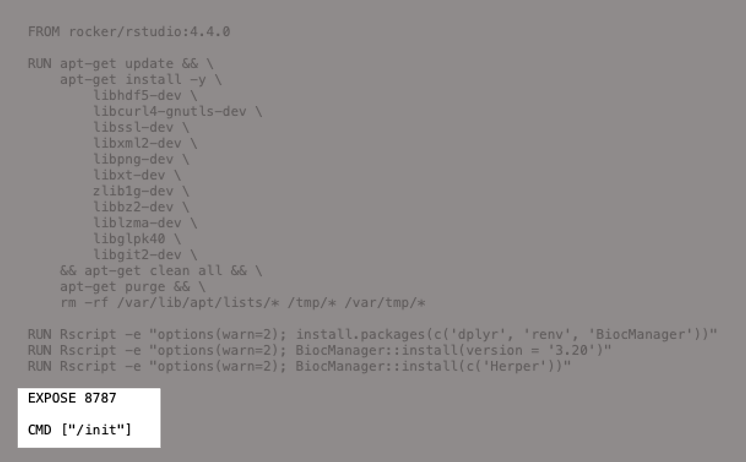

The port 8787 is exposed and the 'init' script that is included with the base RStudio image. These commands are specific to this image and will vary depending on what the Docker container is meant to do when launched.

Building an image with a Dockerfile

• A tag is added to distinguish this image
• The directory that contains the Dockerfile is the last argument
• If no file name is given, it will look for a file called 'Dockerfile'
  • 'Dockerfile' is in the data directory of course materials

Code (terminal):

cd ~/Downloads/RU_reproducibleR-master/r_course

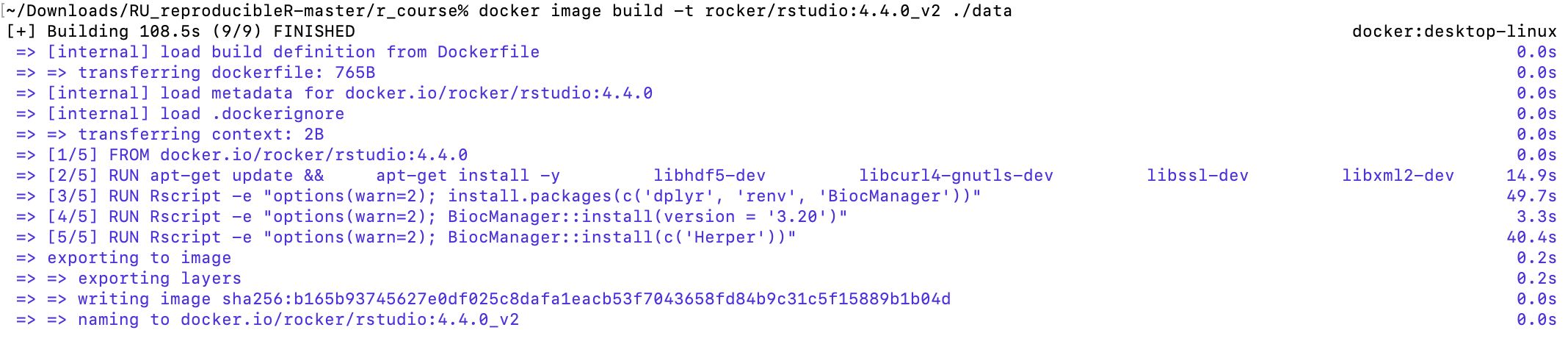

docker image build -t rocker/rstudio:4.4.0_v2 ./data

Output:

Building an image with a Dockerfile

Use the docker images command to see image

Code (terminal):

docker images

Output:

Running the custom container

As done previously, use the docker container run command to launch a container with our customized RStudio session

Code (terminal):

docker container run --rm \
          -v ./data:/home/rstudio \
          -p 8787:8787 \
           -e PASSWORD=password123 \
           rocker/rstudio:4.4.0_v2

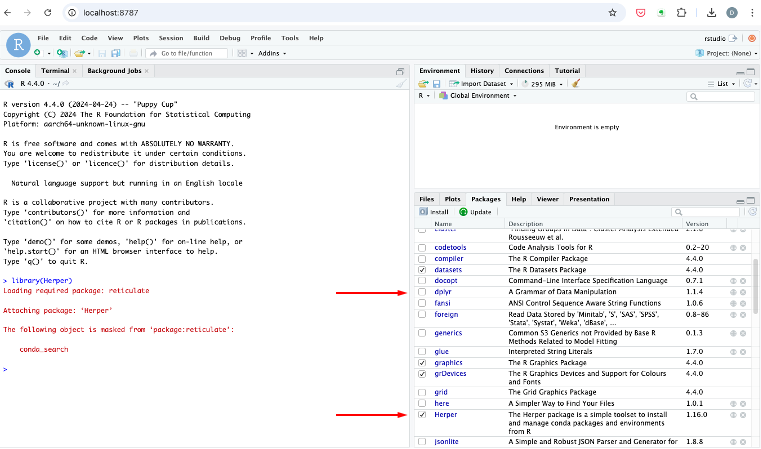

Running the custom container

As done previously, use the docker container run command to launch a container with our customized RStudio session

Output:

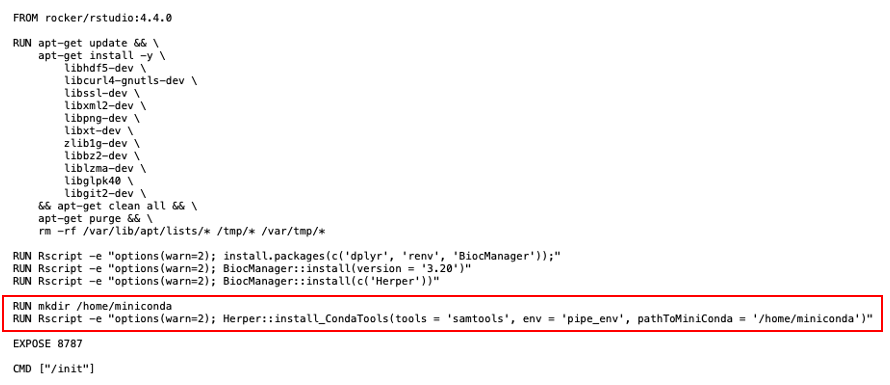

Use Herper for conda packages

Use Herper for conda packages

The directory that contains the Dockerfile is the last argument

This Dockerfile is not named 'Dockerfile', so we specify the exact path with '-f' argument

Code (terminal):

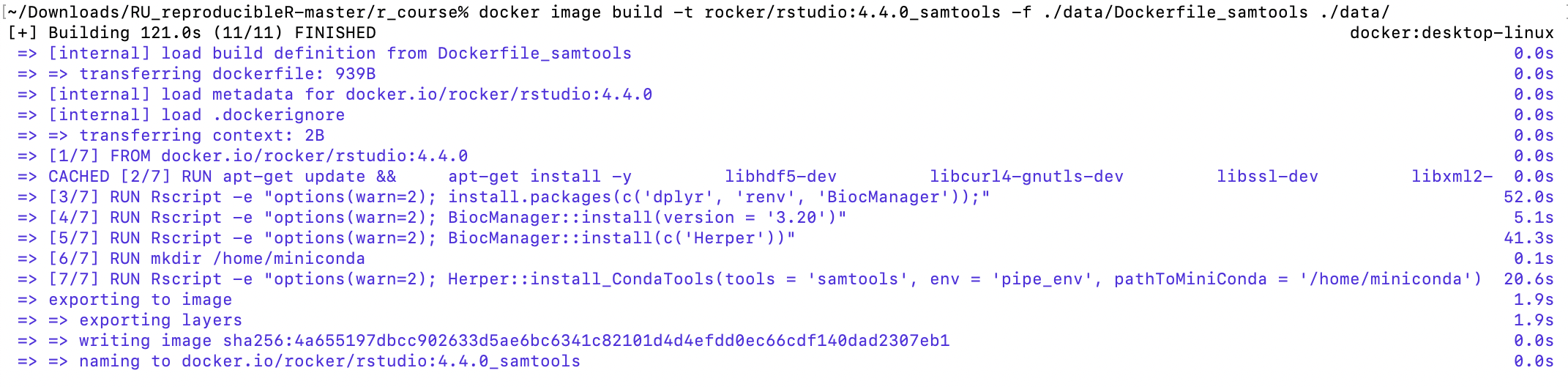

docker image build -t rocker/rstudio:4.4.0_samtools -f ./data/Dockerfile_samtools ./data/

Output:

Use Herper for conda packages

Code (terminal):

docker images

Output:

Code (terminal):

docker container run --rm \
          -v ./data:/home/rstudio \
          -p 8787:8787 \
           -e PASSWORD=password123 \
           rocker/rstudio:4.4.0_samtools

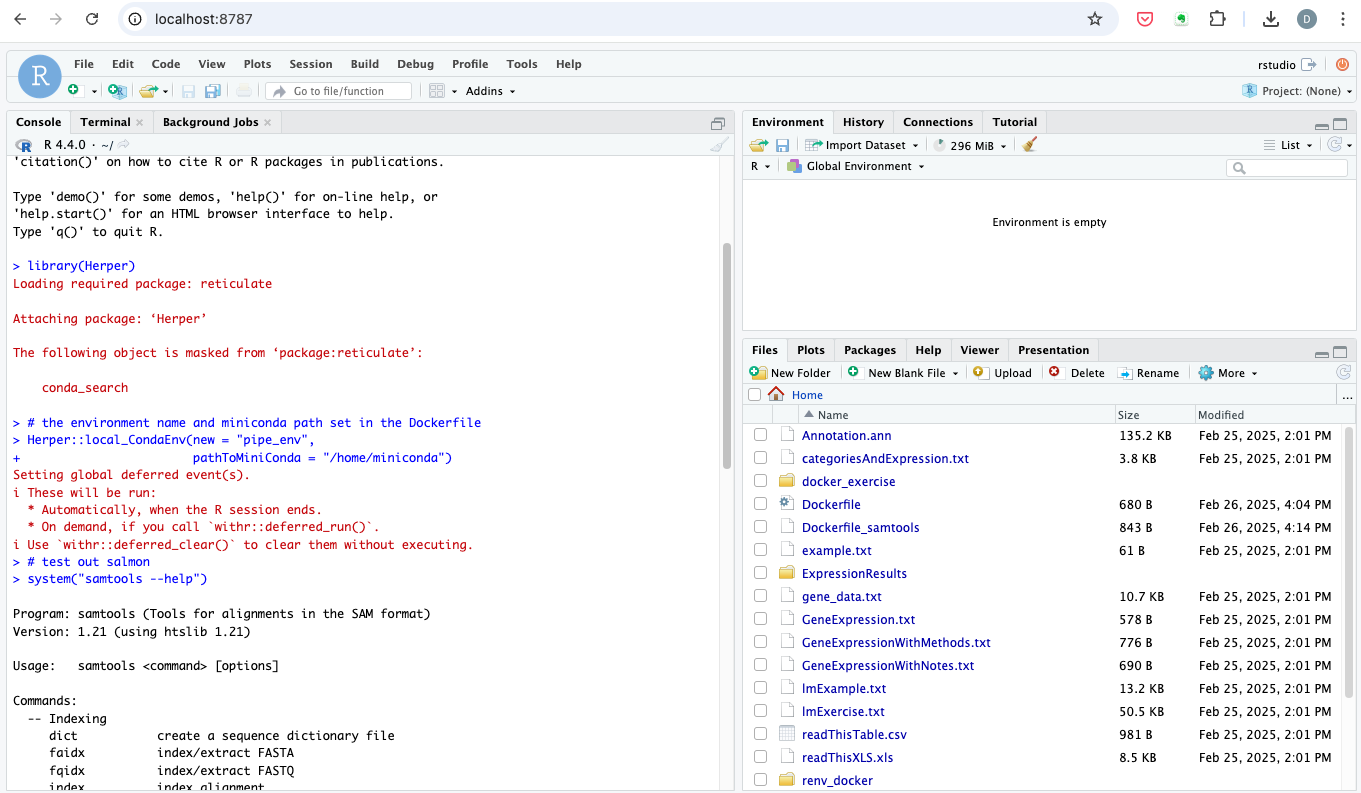

Use Herper for conda packages

Code (R in docker image):

library(Herper)
# the environment name and miniconda path set in the Dockerfile
Herper::local_CondaEnv(new = "pipe_env",
                       pathToMiniConda = "/home/miniconda")
# test out samtools
system("samtools --help")

Output:

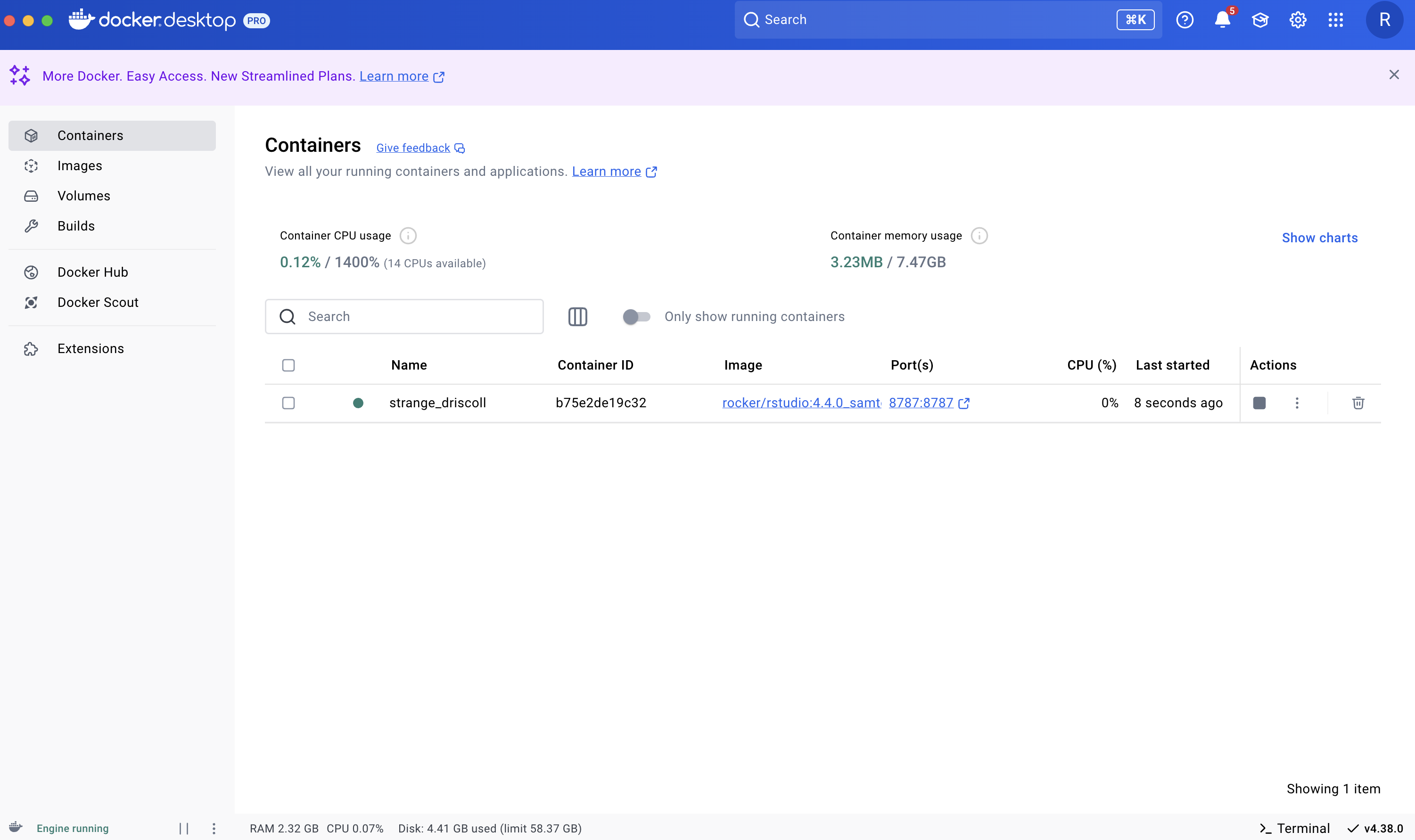

Run container from Docker Desktop

We can also run containers from Docker Desktop

Run container from Docker Desktop

We can also run containers from Docker Desktop

Run R interactively in container

Oftentimes Docker is used to run a specific set of software interactively within the terminal. This allows for running custom scripts contained within the Docker container as well.

So far we have only been using the R Studio Docker image which provides it's own user interface. Here we will use Docker to run a specific version of R and R packages in the terminal interactively. The Rocker suite has images that just contain R, without R studio.

Run R interactively in container

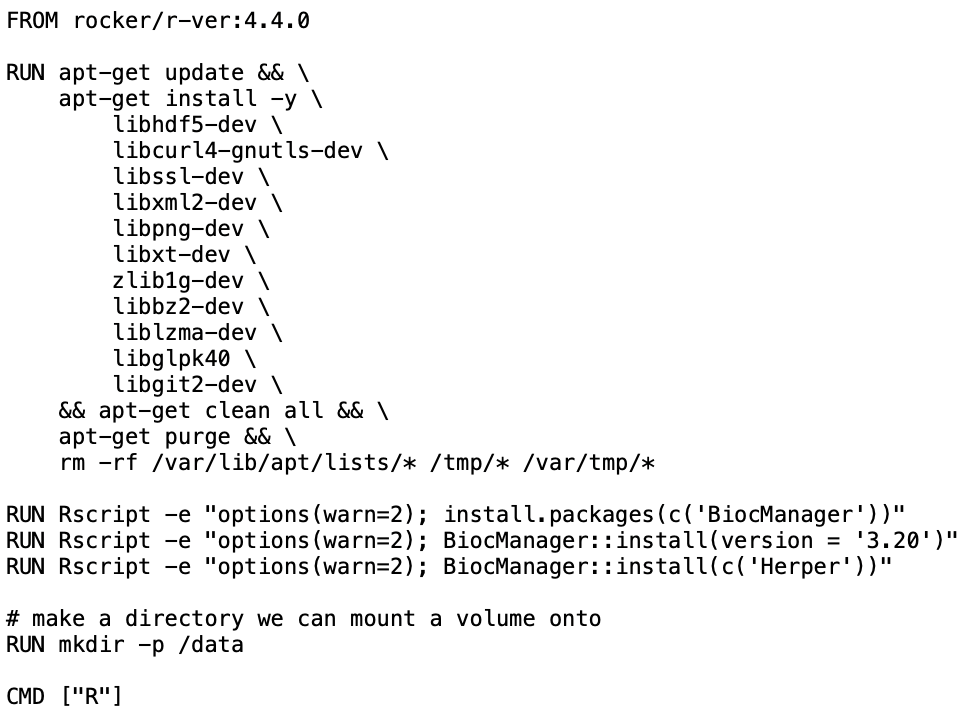

All we have to do is change the base Docker image that we pull, and change the command at the end of the Dockerfile to 'R' so it will run R once we launch a container.

Run R interactively in container

After building this image as we have done previously, it should be run with the '-it' flag, which will run this container within an interactive terminal. Using these flags, when the 'R' command at the end of the Dockerfile is run upon launch, it will open the version of R in the image.

First we build this image from the Dockerfile like we've done before.

Code (terminal):

docker image build -t rocker/r-ver:4.4.0_cust -f ./data/Dockerfile_R ./data/

Then we run a container with the data directory mounted and the '-it' flag.

Code (terminal):

cd ~/Downloads/RU_reproducibleR-master/r_course
docker container run -it -v ./data:/data  rocker/r-ver:4.4.0_cust

*output on next slide

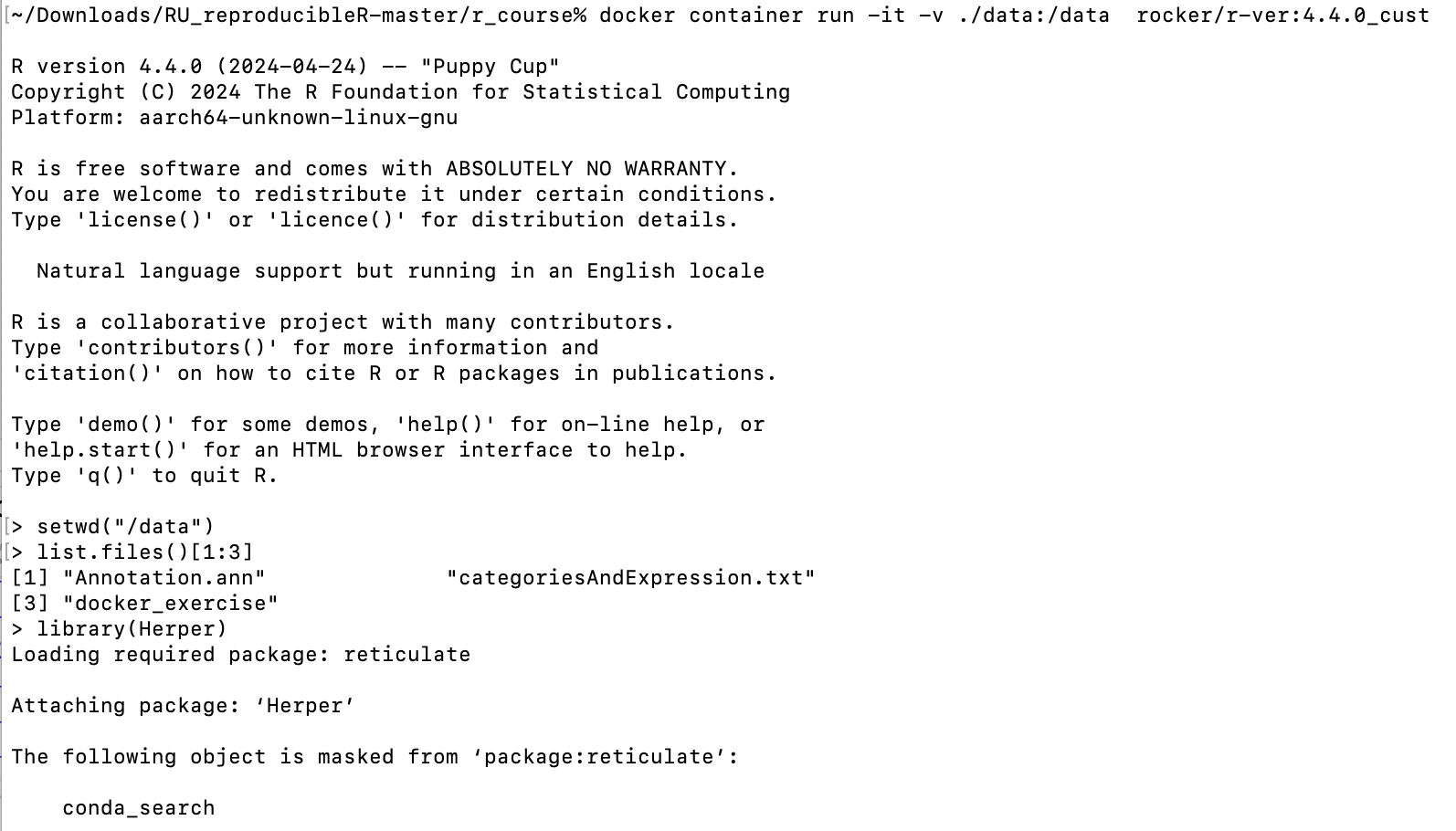

Run R interactively in container

Output (terminal):

Run Python interactively in container

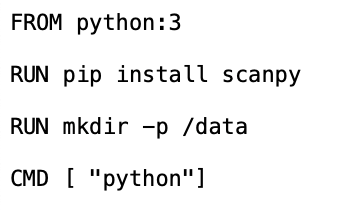

Python also has images available on Docker Hub and we can make a Dockerfile that has a specific version of Python and any other packages we want available in that environment.

Here we pull the python image, use pip to install a Python package (scanpy), then end with the 'python' command to open a Python session in the terminal.

Dockerfile:

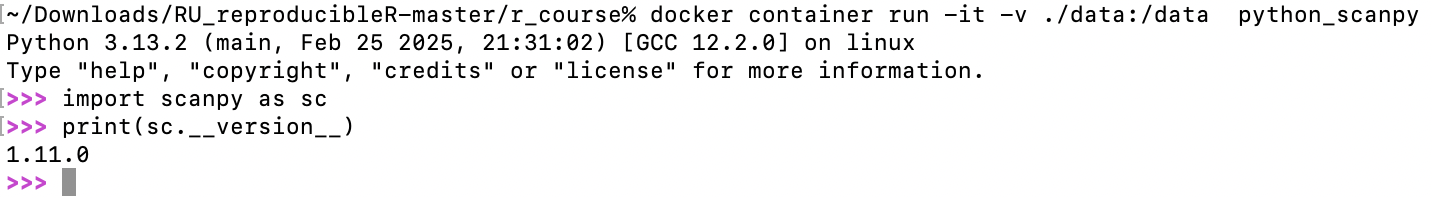

Run Python interactively in container

Code (terminal):

docker image build -t python_scanpy -f ./data/Dockerfile_scanpy ./data/
cd ~/Downloads/RU_reproducibleR-master/r_course
docker container run -it -v ./data:/data  python_scanpy

Pushing images to Docker Hub

If we then want to share our images with someone else, or simply store them elsewhere for future use, we can push to Docker Hub.

Make sure you have an account on Docker Hub.

Then create a repository with the same name as the image we want to push. Let's share the R Studio image with samtools, so it would be 'rstudio_4.4.0_samtools'. A repository must exist on Docker Hub before pushing to it.

Pushing images to Docker Hub

Once the repository is created on Docker Hub, we do the following steps to push the image:

• login to Docker with your credentials
• tag the image you want to push with the version
• push to Docker Hub

Code (terminal):

# log in and provide credentials used to sign into Docker Hub
# include the username you used for dockerhub and this will prompt you to enter the password
docker login -u (enter your username)
# tag the image you want to push with your Docker Hub username and a tag name after the colon
# the ID is from the 'docker images' command
docker image tag 292c85d1812f rubrc/rstudio_4.4.0_samtools:topush
# push to Docker Hub
docker image push rubrc/rstudio_4.4.0_samtools:topush

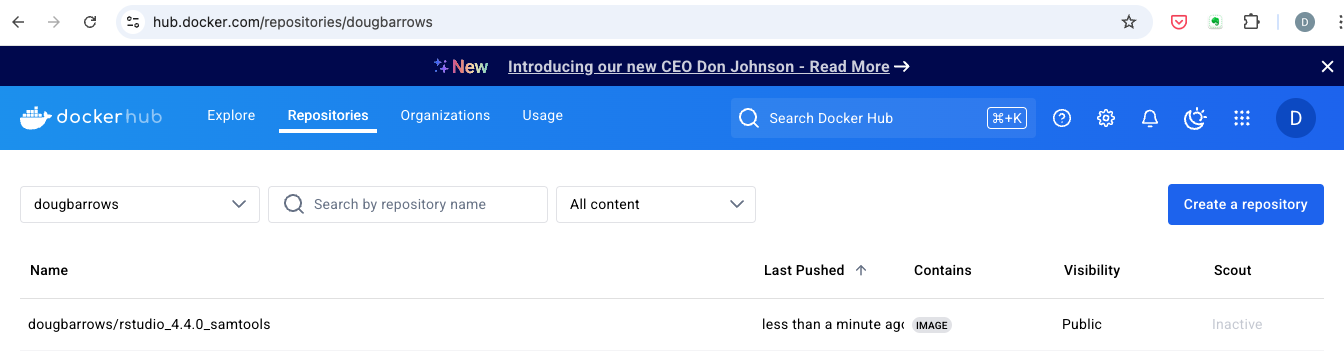

Pushing images to Docker Hub

If we then want to share our images with someone else, or simply store them elsewhere for future use, we can push to Docker Hub.

Make sure you have an account on Docker Hub.

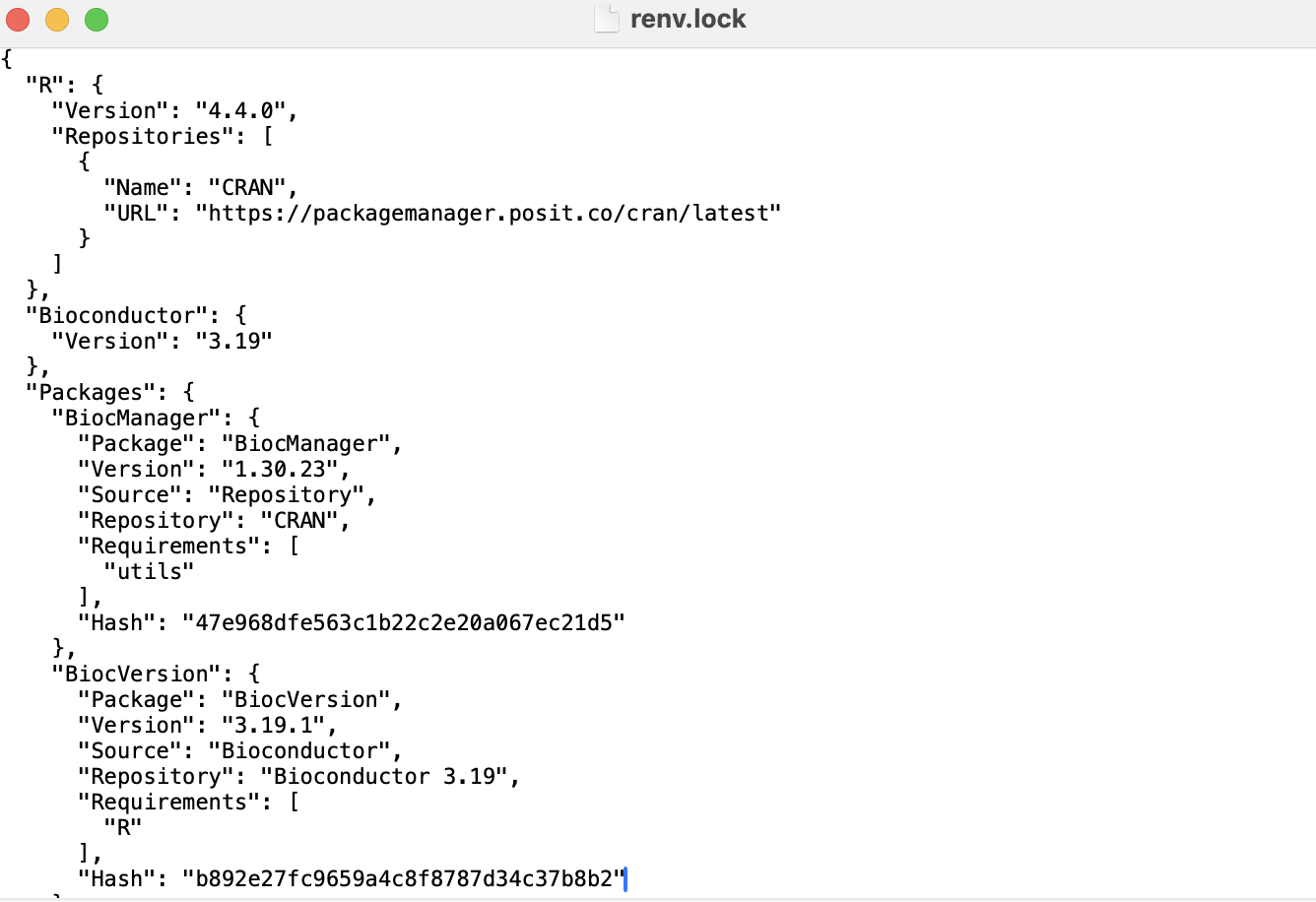

Make a lock file

renv and Docker can be used in tandem to easily recreate and R environment.

There is a renv lock file in the 'r_course/data/renv_docker' folder within the course materials. This lock file generated by renv shows the versions of R and the loaded packages that were part of my project.

Dockerfile with renv

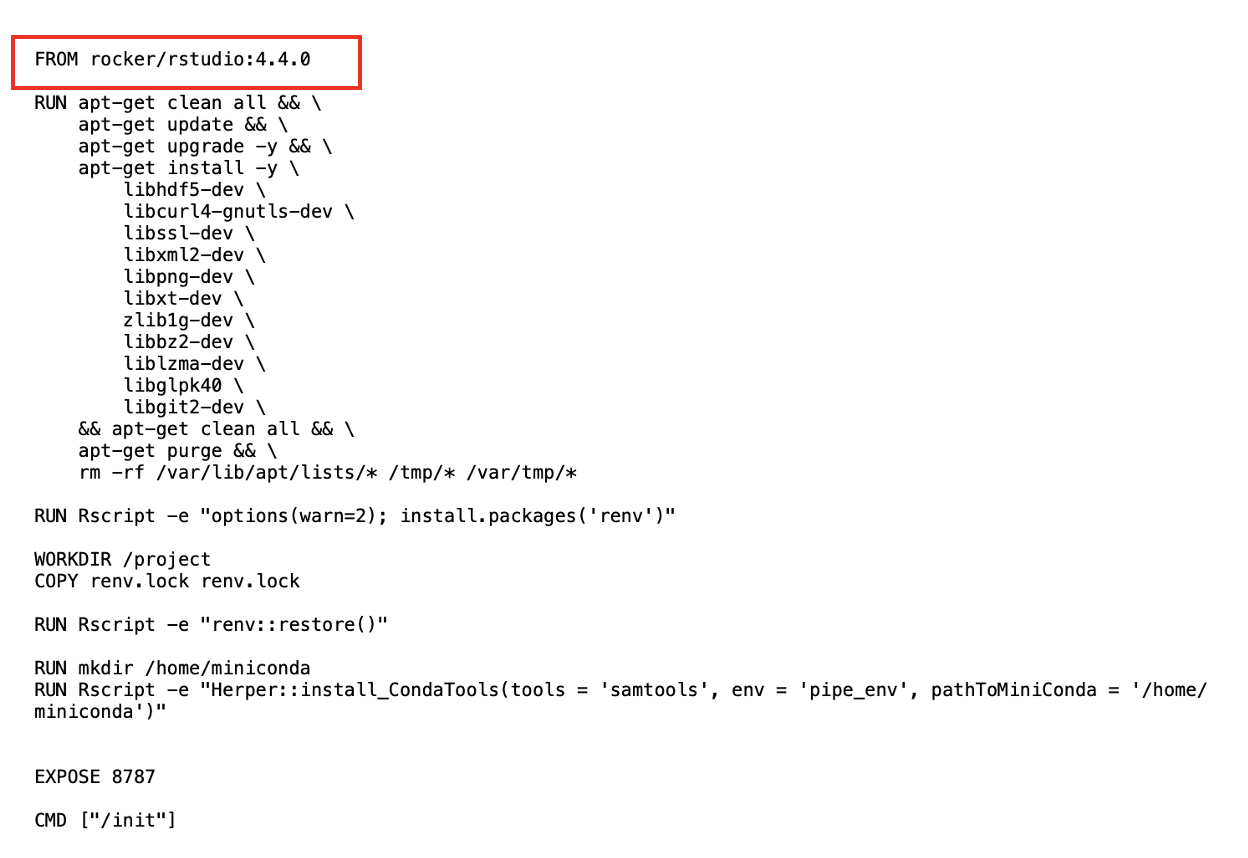

We will now use renv within a Dockerfile. R still needs to be installed to use renv, so we use Rocker again to install a specific version of R to match the renv lock file.

Dockerfile with renv

When building the image the lock file is copied to the image into a directory that is created and set as the working directory with the WORKDIR command.

Building image and running container

Build the image with the build context (last argument) set to the directory containing the Dockerfile and the lock file, then launch a container.

cd ~/Downloads/RU_reproducibleR-master/r_course
# build the image
docker image build -t rocker/rstudio:4.4.0_renv ./data/renv_docker
# launch a container
docker container run --rm \
          -v ./data/renv_docker:/home/rstudio \
          -p 8787:8787 \
           -e PASSWORD=password123 \
           rocker/rstudio:4.4.0_renv

Using Docker on HPC

Docker is generally not allowed on the HPC due to the need to have root access. You can use Docker images by using another containerization software called Apptainer.

Apptainer was designed to play nice with Docker and the Apptainer manual goes into detail about how to use Apptainer with Docker images.

Apptainer is not installed on the head nodes, so you can run interactively if your lab has it's own node, or you can submit jobs to the HPC scheduler.

# login to your lab node
# pull image from Docker Hub
apptainer pull docker://rocker/r-ver:4.4.0
# open an R console using the resulting Apptainer image
apptainer exec r-ver_4.4.0.sif R

Exercises

Exercise on Reproducibility in R can be found here

Contact

Any suggestions, comments, edits or questions (about content or the slides themselves) please reach out to our GitHub and raise an issue.
