# Quality control - CUT&RUN

---

## Quality Control

CUT&RUN has many sources of potential noise including
* Varying efficiency of antibodies
* Non-specific binding
* Library complexity
* artifacts and background

Many of these sources of noise can be assessed using some well established methodology, many borrowed from ChIPseq..

---

## Mapped reads

First, we can retrieve and plot the number of mapped reads using [the **idxstatsBam()** function.](https://rockefelleruniversity.github.io/Bioconductor_Introduction//presentations/slides/AlignedDataInBioconductor.html#16)

``` r
mappedReads <- idxstatsBam("~/Downloads/SOX9CNR_W6_rep1_sorted.bam")
mappedReads <- mappedReads[mappedReads$seqnames %in% paste0("chr", c(1:19, "X", "Y",
    "M")), ]
TotalMapped <- sum(mappedReads[, "mapped"])
ggplot(mappedReads, aes(x = seqnames, y = mapped)) + geom_bar(stat = "identity") +
    coord_flip()
```

![](Session3_QC_files/figure-html/mapped-1.png)
---

## Quality metrics for CUT&RUN

The [**ChIPQC package**](https://bioconductor.org/packages/release/bioc/html/ChIPQC.html) wraps some of the metrics into a Bioconductor package and takes care to measure these metrics under the appropriate condition.

To run a single sample we can use the **ChIPQCsample()** function, the relevant **unfiltered** BAM file and we are recommended to supply a **blacklist** as a BED file or GRanges and Genome name.

We can use the same blacklist bed file that we used for peak calling. This file is available in the *data* folder of this course and also at the [Boyle lab Github page](https://github.com/Boyle-Lab/Blacklist/tree/master/lists).

``` r
QCresult <- ChIPQCsample(reads = "/pathTo/myCnRreads.bam", genome = "mm10", peaks = "/pathTo/myCnRpeaks.bed",
    blacklist = "/pathTo/mm10_Blacklist.bed")
```

---
## Quality control with ChIPQC

We can then provide an initial analysis of our CUT&RUN samples quality using the **ChIPQCsample()** function from the [**ChIPQC** package.](http://bioconductor.org/packages/stats/bioc/ChIPQC/)

Here we evaluate the quality of samples we aligned in the prior session with Rsubread. The returned object is a **ChIPQCsample** object.

Note: We use the BAM file before we filtered out low quality reads and blacklist so we can incorporate those reads into our QC analysis.

``` r
library(ChIPQC)
blklist <- rtracklayer::import.bed("data/mm10-blacklist.v2.bed")
qc_sox9_rep1 <- ChIPQCsample("data/SOX9CNR_W6_rep1_chr18_sorted.bam", annotation = "mm10",
    peaks = "data/SOX9CNR_W6_rep1_chr18_peaks.narrowPeak", blacklist = blklist, chromosomes = "chr18")
```

```
##
 1 / 300
 2 / 300
 3 / 300
 4 / 300
 5 / 300
 6 / 300
 7 / 300
 8 / 300
 9 / 300
 10 / 300
 11 / 300
 12 / 300
 13 / 300
 14 / 300
 15 / 300
 16 / 300
 17 / 300
 18 / 300
 19 / 300
 20 / 300
 21 / 300
 22 / 300
 23 / 300
 24 / 300
 25 / 300
 26 / 300
 27 / 300
 28 / 300
 29 / 300
 30 / 300
 31 / 300
 32 / 300
 33 / 300
 34 / 300
 35 / 300
 36 / 300
 37 / 300
 38 / 300
 39 / 300
 40 / 300
 41 / 300
 42 / 300
 43 / 300
 44 / 300
 45 / 300
 46 / 300
 47 / 300
 48 / 300
 49 / 300
 50 / 300
 51 / 300
 52 / 300
 53 / 300
 54 / 300
 55 / 300
 56 / 300
 57 / 300
 58 / 300
 59 / 300
 60 / 300
 61 / 300
 62 / 300
 63 / 300
 64 / 300
 65 / 300
 66 / 300
 67 / 300
 68 / 300
 69 / 300
 70 / 300
 71 / 300
 72 / 300
 73 / 300
 74 / 300
 75 / 300
 76 / 300
 77 / 300
 78 / 300
 79 / 300
 80 / 300
 81 / 300
 82 / 300
 83 / 300
 84 / 300
 85 / 300
 86 / 300
 87 / 300
 88 / 300
 89 / 300
 90 / 300
 91 / 300
 92 / 300
 93 / 300
 94 / 300
 95 / 300
 96 / 300
 97 / 300
 98 / 300
 99 / 300
 100 / 300
 101 / 300
 102 / 300
 103 / 300
 104 / 300
 105 / 300
 106 / 300
 107 / 300
 108 / 300
 109 / 300
 110 / 300
 111 / 300
 112 / 300
 113 / 300
 114 / 300
 115 / 300
 116 / 300
 117 / 300
 118 / 300
 119 / 300
 120 / 300
 121 / 300
 122 / 300
 123 / 300
 124 / 300
 125 / 300
 126 / 300
 127 / 300
 128 / 300
 129 / 300
 130 / 300
 131 / 300
 132 / 300
 133 / 300
 134 / 300
 135 / 300
 136 / 300
 137 / 300
 138 / 300
 139 / 300
 140 / 300
 141 / 300
 142 / 300
 143 / 300
 144 / 300
 145 / 300
 146 / 300
 147 / 300
 148 / 300
 149 / 300
 150 / 300
 151 / 300
 152 / 300
 153 / 300
 154 / 300
 155 / 300
 156 / 300
 157 / 300
 158 / 300
 159 / 300
 160 / 300
 161 / 300
 162 / 300
 163 / 300
 164 / 300
 165 / 300
 166 / 300
 167 / 300
 168 / 300
 169 / 300
 170 / 300
 171 / 300
 172 / 300
 173 / 300
 174 / 300
 175 / 300
 176 / 300
 177 / 300
 178 / 300
 179 / 300
 180 / 300
 181 / 300
 182 / 300
 183 / 300
 184 / 300
 185 / 300
 186 / 300
 187 / 300
 188 / 300
 189 / 300
 190 / 300
 191 / 300
 192 / 300
 193 / 300
 194 / 300
 195 / 300
 196 / 300
 197 / 300
 198 / 300
 199 / 300
 200 / 300
 201 / 300
 202 / 300
 203 / 300
 204 / 300
 205 / 300
 206 / 300
 207 / 300
 208 / 300
 209 / 300
 210 / 300
 211 / 300
 212 / 300
 213 / 300
 214 / 300
 215 / 300
 216 / 300
 217 / 300
 218 / 300
 219 / 300
 220 / 300
 221 / 300
 222 / 300
 223 / 300
 224 / 300
 225 / 300
 226 / 300
 227 / 300
 228 / 300
 229 / 300
 230 / 300
 231 / 300
 232 / 300
 233 / 300
 234 / 300
 235 / 300
 236 / 300
 237 / 300
 238 / 300
 239 / 300
 240 / 300
 241 / 300
 242 / 300
 243 / 300
 244 / 300
 245 / 300
 246 / 300
 247 / 300
 248 / 300
 249 / 300
 250 / 300
 251 / 300
 252 / 300
 253 / 300
 254 / 300
 255 / 300
 256 / 300
 257 / 300
 258 / 300
 259 / 300
 260 / 300
 261 / 300
 262 / 300
 263 / 300
 264 / 300
 265 / 300
 266 / 300
 267 / 300
 268 / 300
 269 / 300
 270 / 300
 271 / 300
 272 / 300
 273 / 300
 274 / 300
 275 / 300
 276 / 300
 277 / 300
 278 / 300
 279 / 300
 280 / 300
 281 / 300
 282 / 300
 283 / 300
 284 / 300
 285 / 300
 286 / 300
 287 / 300
 288 / 300
 289 / 300
 290 / 300
 291 / 300
 292 / 300
 293 / 300
 294 / 300
 295 / 300
 296 / 300
 297 / 300
 298 / 300
 299 / 300
 300 / 300
```

```
## done
## Calculating coverage
## [1] 1
```

``` r
class(qc_sox9_rep1)
```

```
## [1] "ChIPQCsample"
## attr(,"package")
## [1] "ChIPQC"
```

---
## Quality control with ChIPQC

We can display our **ChIPQCsample** object which will show a basic summary of our CUT&RUN quality.

``` r
qc_sox9_rep1
```

```
## 					ChIPQCsample
```

```
## Number of Mapped reads: 829781
```

```
## Number of Mapped reads passing MapQ filter: 788532
```

```
## Percentage Of Reads as Non-Duplicates (NRF): 100(0)
```

```
## Percentage Of Reads in Blacklisted Regions: 2
```

```
## SSD: 2.61011887557391
```

```
## Fragment Length Cross-Coverage: 0.0133142837287353
```

```
## Relative Cross-Coverage: 1.06351020408163
```

```
## Percentage Of Reads in GenomicFeature:
```

```
##                         ProportionOfCounts
## Peaks                           0.00000000
## BlackList                       0.02050392
## LongPromoter20000to2000         0.27655060
## Promoters2000to500              0.03991975
## Promoters500                    0.03665038
## All5utrs                        0.01701516
## Alltranscripts                  0.57769628
## Allcds                          0.01479838
## Allintrons                      0.54665125
## All3utrs                        0.01184733
```

```
## Percentage Of Reads in Peaks: 0
```

```
## Number of Peaks: 0
```

```
## GRanges object with 0 ranges and 2 metadata columns:
##    seqnames    ranges strand |    Counts bedRangesSummitsTemp
##       <Rle> <IRanges>  <Rle> | <integer>            <numeric>
##   -------
##   seqinfo: 1 sequence from an unspecified genome; no seqlengths
```

---
## QC of multiple samples

It is helpful to review CUT&RUN quality versus other samples (including any IgG) which we are using (or even external data if you do not have your own).

This will allow us to identify expected patterns of CUT&RUN enrichment in our samples versus controls as well as spot any outlier samples by these metrics.

We can run **ChIPQCsample()** on all our samples of interest using an **lapply**. First we make vectors of BAM files and peak files where the indeces of BAMs and corresponding peaks line up.

If you want to try on your own, the BAM files are [available on dropbox](https://www.dropbox.com/scl/fo/f8q9iz5j1mic0wrhzei2c/AEIL42gWMI-Tc_OwFxc5wOA?rlkey=gxl9u7rqk783zuz4tezj9e3pu&st=qzh2allk&dl=0), but be aware that they are big files.

``` r
bamsToQC <- c("~/Downloads/SOX9CNR_D0_rep1_sorted.bam", "~/Downloads/SOX9CNR_D0_rep2_sorted.bam",
    "~/Downloads/SOX9CNR_W6_rep1_sorted.bam", "~/Downloads/SOX9CNR_W6_rep2_sorted.bam")

peaksToQC <- c("data/peaks/SOX9CNR_D0_rep1_macs_peaks.narrowPeak", "data/peaks/SOX9CNR_D0_rep2_macs_peaks.narrowPeak",
    "data/peaks/SOX9CNR_W6_rep1_macs_peaks.narrowPeak", "data/peaks/SOX9CNR_W6_rep2_macs_peaks.narrowPeak")
```

---
## QC of multiple samples

Then we can run the `ChIPQCsample` function using *lapply* while cycling through the paths to BAM and peak files. Here we limit the analyis to chromosome 18.

``` r
myQC <- lapply(seq_along(bamsToQC), function(x) {
    ChIPQCsample(bamsToQC[x], annotation = "mm10", peaks = peaksToQC[x], blacklist = blklist,
        chromosomes = "chr18")
})
names(myQC) <- basename(bamsToQC)
```

---
## QC of multiple samples

All ChIPQC functions can work with a named list of **ChIPQCsample** objects to aggregate scores into table as well as plots.

Here we use the **QCmetrics()** function to give an overview of quality metrics.

``` r
QCmetrics(myQC)
```

```
##                              Reads Map% Filt% Dup% ReadL FragL RelCC  SSD  RiP%
## SOX9CNR_D0_rep1_sorted.bam 3858873  100  7.49    0    36    79 2.000 3.23  5.59
## SOX9CNR_D0_rep2_sorted.bam 2310101  100  9.05    0    34    81 3.290 3.50  1.22
## SOX9CNR_W6_rep1_sorted.bam  835558  100  5.05    0    36    73 0.975 2.66 32.80
## SOX9CNR_W6_rep2_sorted.bam 1600013  100  5.49    0    35    71 0.348 5.60 25.90
##                            RiBL%
## SOX9CNR_D0_rep1_sorted.bam  2.70
## SOX9CNR_D0_rep2_sorted.bam  2.72
## SOX9CNR_W6_rep1_sorted.bam  1.91
## SOX9CNR_W6_rep2_sorted.bam  1.97
```

---
class: inverse, center, middle

# Blacklists and SSD

---

## Blacklists

As we discussed while calling peaks, CUT&RUN will often show the presence of common artifacts, such as ultra-high signal regions. Such regions can confound peak calling, fragment length estimation and QC metrics. Anshul Kundaje created the DAC blacklist as a reference to help deal with these regions.

---
## Blacklists and SSD

SSD is one of these measures that is sensitive to blacklisted artifacts. SSD is a measure of standard deviation of signal across the genome with higher scores reflecting significant pile-up of reads. SSD can therefore be used to assess both the extent of ultra high signals and the signal. But first blacklisted regions must be removed.

---
## Standardized Standard Deviation

ChIPQC calculates SSD before and after removing signal coming from Blacklisted regions.

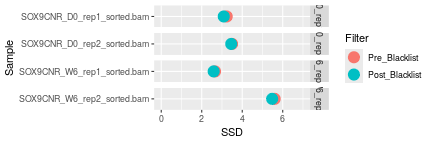

The **plotSSD()** function plots samples's pre-blacklisting score in **red** and post-blacklisting score in **blue**.

Blacklisting does not have a huge impact on SSD in our samples, suggesting a strong peak signal.

``` r
plotSSD(myQC) + xlim(0, 7)
```

![](Session3_QC_files/figure-html/unnamed-chunk-7-1.png)

---
## Standardized Standard Deviation

This is not always the case. Sometimes you will much higher pre-blacklist SSD than post-blacklist SSD. This would indicate a strong background signal in blacklisted regions for that sample.

Below is an example of this from another dataset:

---
class: inverse, center, middle

# Library complexity and enrichment

---

## Library complexity

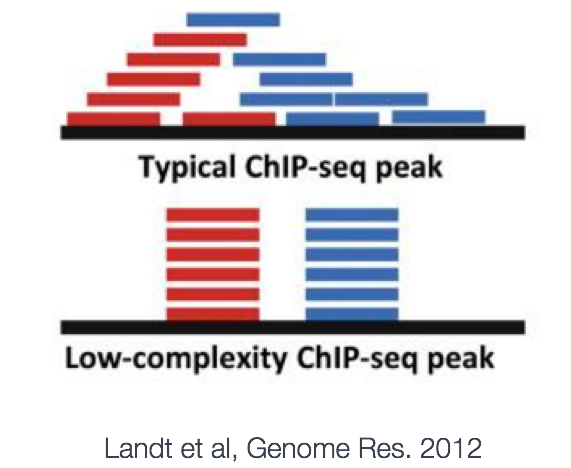

A potential source of noise in CUT&RUN is overamplification of the CUT&RUN library during a PCR step. This can lead to large number of duplicate reads which may confound peak calling.

![](imgs/mappable.png)

---
## Duplication

We should compare our duplication rate across samples to identify any sample experiencing overamplification and so potential of a lower complexity.

The **flagtagcounts()** function reports can report the number of duplicates and total mapped reads and so from there we can calculate our duplication rate.

``` r
myFlags <- flagtagcounts(myQC)
myFlags["DuplicateByChIPQC", ]/myFlags["Mapped", ]
```

```
## SOX9CNR_D0_rep1_sorted.bam SOX9CNR_D0_rep2_sorted.bam
##                 0.18044154                 0.25100764
## SOX9CNR_W6_rep1_sorted.bam SOX9CNR_W6_rep2_sorted.bam
##                 0.22392940                 0.05412144
```

---
## Enrichment for reads across genes

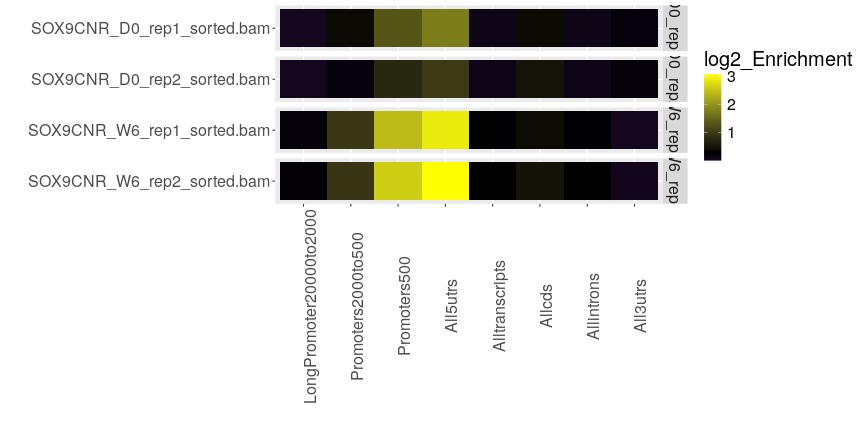

We can also use ChIPQC to review where our distribution of reads across gene features using the **plotRegi()** function.

Here we expect CUT&RUN signal to be stronger in 5'UTRs and promoters when compared to input samples.

``` r
p <- plotRegi(myQC)
```

---
## Enrichment for reads across genes.

``` r
p
```

![](Session3_QC_files/figure-html/unnamed-chunk-11-1.png)

---

# Quality control - ATACseq

---

## Distribution of mapped reads

In ATACseq we will want to check the distribution of mapped reads across chromosomes. [We can check the number of mapped reads on every chromosome using the **idxstatsBam()** function.](https://rockefelleruniversity.github.io/Bioconductor_Introduction/r_course/presentations/slides/AlignedDataInBioconductor.html#15)

ATACseq is known have high signal on the mitochondrial chromosomes and so we can check for that here.

``` r
library(Rsamtools)
mappedReads_atac <- idxstatsBam("W6_ATAC_rep1_sorted.bam")
mappedReads_atac <- mappedReads_atac[mappedReads_atac$seqnames %in% paste0("chr",
    c(1:19, "X", "Y", "M")), ]
```

---
## Distribution of mapped reads

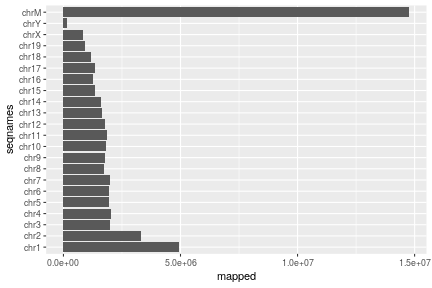

We can now use the mapped reads data frame to make a barplot of reads across chromosomes.

In this example, we see a case where the mapping rate to mitochondrial genome is high.

``` r
library(ggplot2)

ggplot(mappedReads_atac, aes(seqnames, mapped)) + geom_bar(stat = "identity") + coord_flip()
```

![](Session3_QC_files/figure-html/quickMappingStatsPerChromosomes-1.png)

---
class: inverse, center, middle

# ATACseqQC

---

## ATACseqQC

The **ATACseqQC** library allows us to run many of the ATACseq QC steps we have seen in a single step. It may consume a little more memory but will allow for the inclusion of two more useful metrics called the PCR Bottleneck Coefficients (PBC1 and PBC2).

First we must install the library.

``` r
BiocManager::install("ATACseqQC")
```

---
## ATACseqQC

As with ChIPQC, the ATACseqQC function contains a workflow function which will acquire much of the required QC with a single argument of the BAM file path.

Since this can be fairly memory heavy, I am just illustrating it here on a BAM file containing just the chromosome 18 reads of the ATACseq data.

``` r
library(ATACseqQC)
```

```
##
```

``` r
atac_bam <- "data/W6_ATAC_rep1_chr18_sorted.bam"
ATACQC <- bamQC(atac_bam)
```

---
## ATACseqQC

The resulting ATACQC object has many slots of QC information including duplicateRate, non-redundant fraction, distribution of signal across chromosomes, mitochondrial fraction etc.

These include the **PCRbottleneckCoefficient_1** and **PCRbottleneckCoefficient_2** values.

``` r
names(ATACQC)
```

```
##  [1] "totalQNAMEs"                   "duplicateRate"
##  [3] "mitochondriaRate"              "properPairRate"
##  [5] "unmappedRate"                  "hasUnmappedMateRate"
##  [7] "notPassingQualityControlsRate" "nonRedundantFraction"
##  [9] "PCRbottleneckCoefficient_1"    "PCRbottleneckCoefficient_2"
## [11] "MAPQ"                          "idxstats"
```

---
## PCR bottleneck coefficients

PCR bottleneck coefficients identify PCR bias/overamplification which may have occurred in preparation of ATAC samples.

The **PCRbottleneckCoefficient_1** is calculated as the number of positions in genome with *exactly* 1 read mapped uniquely compared to the number of positions with *at least* 1 read.

For example if we have 20 reads. 16 map uniquely to locations. 4 do not map uniquely, instead there are 2 locations, both of which have 2 reads. This would lead us to calculation 16/18. We therefore have a PBC1 of 0.889

Values less than 0.7 indicate severe bottlenecking, between 0.7 and 0.9 indicate moderate bottlenecking. Greater than 0.9 show no bottlenecking.

``` r
ATACQC$PCRbottleneckCoefficient_1
```

```
## [1] 0.9419972
```

---
## PCR bottleneck coefficients

The **PCRbottleneckCoefficient_2** is our secondary measure of bottlenecking. It is calculated as the number of positions in genome with **exactly** 1 read mapped uniquely compared to the number of positions with **exactly** 2 reads mapping uniquely.

We can reuse our example. If we have 20 reads, 16 of which map uniquely. 4 do not map uniquely, instead there are 2 locations, both of which have 2 reads. This would lead us to calculation 16/2. We therefore have a PBC2 of 8.

Values less than 1 indicate severe bottlenecking, between 1 and 3 indicate moderate bottlenecking. Greater than 3 show no bottlenecking.

``` r
ATACQC$PCRbottleneckCoefficient_2
```

```
## [1] 17.22071
```

---

## ATACseqQC insert sizes plot

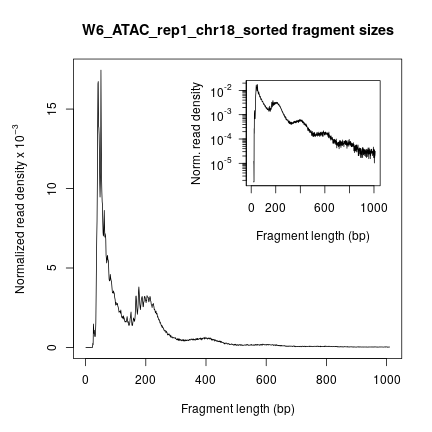

In the peak calling lecture we made a plot of insert sizes. This is a very important QC readout for ATACseq, and ATACseqQC has a function that makes a similar plot by just providing a path to a BAM file.

``` r
fragSize <- fragSizeDist(atac_bam, bamFiles.labels = gsub("\\.bam", "", basename(atac_bam)))
```

![](Session3_QC_files/figure-html/unnamed-chunk-21-1.png)
---

## ATACseqQC insert sizes plot

In addition to printing the plot, this function returns a vector of insert size distributions that could be used to manually make a plot.

This BAM file has not been filtered for proper pairs, so these numbers will be different from those seen in the peak calling lecture.

``` r
fragSize$W6_ATAC_rep1_chr18_sorted[1:10]
```

```
##
##    0   18   19   21   22   23   24   25   26   27
## 1720    2    2   14   10    2  312  198 1714 1314
```

---
class: inverse, center, middle

# Evaluating TSS signal

---

##  Evaluating signal over TSS regions

If our shorter fragments represent the open regions around transcription factors and transcriptional machinery we would expect to see signal at transcriptional start sites.

Our longer fragments will represent signal around nucleosomes and so signal should be outside of the transcriptional start sites and more present at the +1 and -1 nucleosome positions.

---

##  Evaluating signal over TSS regions

We can create a meta-plot over all TSS regions to illustrate where our nucleosome free and nucleosome occupied fractions of signal are most prevalent.

Meta-plots average or sum signal over sets of regions to identify trends in data.

---
##  Plotting signal over regions in R

To produce meta-plots of signal over regions we can use the **soGGi** bioconductor package. We can load in **soGGi** with the BiocManager::install and library function, as we have done before.

``` r
BiocManager::install("soGGi")
library(soGGi)
```
---

##  Plotting regions in soGGi

The soGGi library simply requires a BAM file and a GRanges of regions over which to average signal to produce the meta-plot.

We wish to plot over TSS regions and so we first will need to produce a GRanges of TSS locations for hg19 genome.

Thankfully we now know how to extract these regions for all genes using the **TxDB packages** and some **GenomicRanges** functions.

First we can load our TxDb of interest - **TxDb.Hsapiens.UCSC.hg19.knownGene**.

``` r
library(TxDb.Mmusculus.UCSC.mm10.knownGene)
```

```
## Warning: package 'TxDb.Mmusculus.UCSC.mm10.knownGene' was built under R version
## 4.4.1
```

```
## Warning: package 'GenomicFeatures' was built under R version 4.4.1
```

```
## Warning: package 'AnnotationDbi' was built under R version 4.4.1
```

``` r
TxDb.Mmusculus.UCSC.mm10.knownGene
```

```
## TxDb object:
## # Db type: TxDb
## # Supporting package: GenomicFeatures
## # Data source: UCSC
## # Genome: mm10
## # Organism: Mus musculus
## # Taxonomy ID: 10090
## # UCSC Table: knownGene
## # UCSC Track: GENCODE VM23
## # Resource URL: http://genome.ucsc.edu/
## # Type of Gene ID: Entrez Gene ID
## # Full dataset: yes
## # miRBase build ID: NA
## # transcript_nrow: 142446
## # exon_nrow: 447558
## # cds_nrow: 243727
## # Db created by: GenomicFeatures package from Bioconductor
## # Creation time: 2019-10-21 20:52:26 +0000 (Mon, 21 Oct 2019)
## # GenomicFeatures version at creation time: 1.37.4
## # RSQLite version at creation time: 2.1.2
## # DBSCHEMAVERSION: 1.2
```

---

##  Plotting regions in soGGi

We can extract gene locations (TSS to TTS) [using the **genes()** function and our **TxDb** object.](https://rockefelleruniversity.github.io/Bioconductor_Introduction/r_course/presentations/slides/GenomicFeatures_In_Bioconductor.html#15)

``` r
genesLocations <- genes(TxDb.Mmusculus.UCSC.mm10.knownGene)
```

```
##   66 genes were dropped because they have exons located on both strands
##   of the same reference sequence or on more than one reference sequence,
##   so cannot be represented by a single genomic range.
##   Use 'single.strand.genes.only=FALSE' to get all the genes in a
##   GRangesList object, or use suppressMessages() to suppress this message.
```

``` r
genesLocations
```

```
## GRanges object with 24528 ranges and 1 metadata column:
##             seqnames              ranges strand |     gene_id
##                <Rle>           <IRanges>  <Rle> | <character>
##   100009600     chr9   21062393-21073096      - |   100009600
##   100009609     chr7   84935565-84964115      - |   100009609
##   100009614    chr10   77711457-77712009      + |   100009614
##   100009664    chr11   45808087-45841171      + |   100009664
##      100012     chr4 144157557-144162663      - |      100012
##         ...      ...                 ...    ... .         ...
##       99889     chr3   84496093-85887516      - |       99889
##       99890     chr3 110246109-110250998      - |       99890
##       99899     chr3 151730922-151749960      - |       99899
##       99929     chr3   65528410-65555518      + |       99929
##       99982     chr4 136550540-136602723      - |       99982
##   -------
##   seqinfo: 66 sequences (1 circular) from mm10 genome
```

---
## Plotting regions in soGGi

We can then use the [**resize()** function](https://rockefelleruniversity.github.io/Bioconductor_Introduction/presentations/slides/GenomicIntervals_In_Bioconductor.html#40) to extract the location of start of every gene (the TSSs) in a stranded manner.

Here we set the **fix** position as the start and the width as 1.

``` r
tssLocations <- resize(genesLocations, fix = "start", width = 1)
tssLocations
```

```
## GRanges object with 24528 ranges and 1 metadata column:
##             seqnames    ranges strand |     gene_id
##                <Rle> <IRanges>  <Rle> | <character>
##   100009600     chr9  21073096      - |   100009600
##   100009609     chr7  84964115      - |   100009609
##   100009614    chr10  77711457      + |   100009614
##   100009664    chr11  45808087      + |   100009664
##      100012     chr4 144162663      - |      100012
##         ...      ...       ...    ... .         ...
##       99889     chr3  85887516      - |       99889
##       99890     chr3 110250998      - |       99890
##       99899     chr3 151749960      - |       99899
##       99929     chr3  65528410      + |       99929
##       99982     chr4 136602723      - |       99982
##   -------
##   seqinfo: 66 sequences (1 circular) from mm10 genome
```

---
## Plotting regions in soGGi

When we created our index we subset the genome to the main chromosomes. We can do this again with our TSS GRange object, and update the levels. This means the BAM and GRanges will play nicely.

``` r
mainChromosomes <- paste0("chr", c(1:19, "X", "Y", "M"))

tssLocations <- tssLocations[as.vector(seqnames(tssLocations)) %in% mainChromosomes]

seqlevels(tssLocations) <- mainChromosomes
```

---
##  Plotting regions in soGGi

The soGGi package's **regionPlot()** function requires a BAM file of data to plot supplied to **bamFile** parameter and a GRanges to plot over supplied to **testRanges** argument.

``` r
library(soGGi)
sortedBAM <- "~/Downloads/W6_ATAC_rep1_sorted.bam"

library(Rsamtools)
# Nucleosome free
allSignal <- regionPlot(bamFile = sortedBAM, testRanges = tssLocations)
```

---
## Plotting regions in soGGi

Additionally we supply information on input file format to **format** parameter, whether data is paired to **paired** parameter and type of plot to **style** parameter. We explore visualization options [visualization training](https://rockefelleruniversity.github.io/RU_VisualizingGenomicsData.html).

A useful feature is that we can we can specify the minimum and maximum fragment lengths of paired reads to be used in our plot with the **minFragmentLength** and **maxFragmentLength** parameters. This allows us to select only our nucleosome free signal (< 100 base-pairs) to produce our metaplot over TSS regions.

``` r
nucFree <- regionPlot(bamFile = sortedBAM, testRanges = tssLocations, style = "point",
    format = "bam", paired = TRUE, minFragmentLength = 0, maxFragmentLength = 100,
    forceFragment = 50)
```

```
## Warning: package 'soGGi' was built under R version 4.4.1
```

---
##  Plotting regions in soGGi

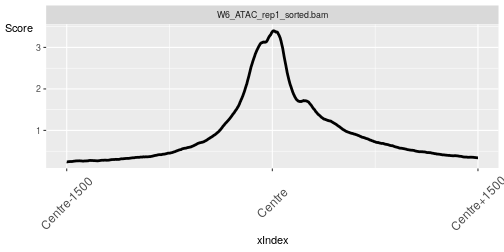

Now we have our profile object we can create our metaplot using the **plotRegion()** function in **soGGi**.

Here we see the expected peak of signal for our nucleosome free region in the region over the TSS.

``` r
plotRegion(nucFree)
```

![](Session3_QC_files/figure-html/processData_plot-1.png)

---

##  Plotting regions in soGGi

We can create a plot for our mono-nucleosome signal by adjusting our **minFragmentLength** and **maxFragmentLength** parameters to those expected for nucleosome length fragments (here 180 to 240).

``` r
monoNuc <- regionPlot(bamFile = sortedBAM, testRanges = tssLocations, style = "point",
    format = "bam", paired = TRUE, minFragmentLength = 180, maxFragmentLength = 240,
    forceFragment = 80)
```

---
##  Plotting regions in soGGi

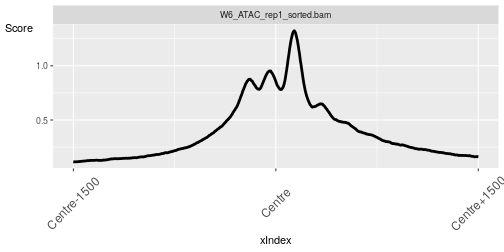

Similarly we can plot the mono-nucleosome signal over TSS locations using **plotRegion()** function.

In this plot we can clearly see the expected +1 nucleosome signal peak as well as several other nucleosome signalpeaks

``` r
plotRegion(monoNuc)
```

![](Session3_QC_files/figure-html/processData_plot3-1.png)

---

## Time for an exercise!

Exercise on CUT&RUN data can be found [here](../../exercises/exercises/ATACCutRunChIP_AlignPeaksQC_exercise.html)

---
## Answers to exercise

Answers can be found [here](../../exercises/answers/ATACCutRunChIP_AlignPeaksQC_answers.html)
